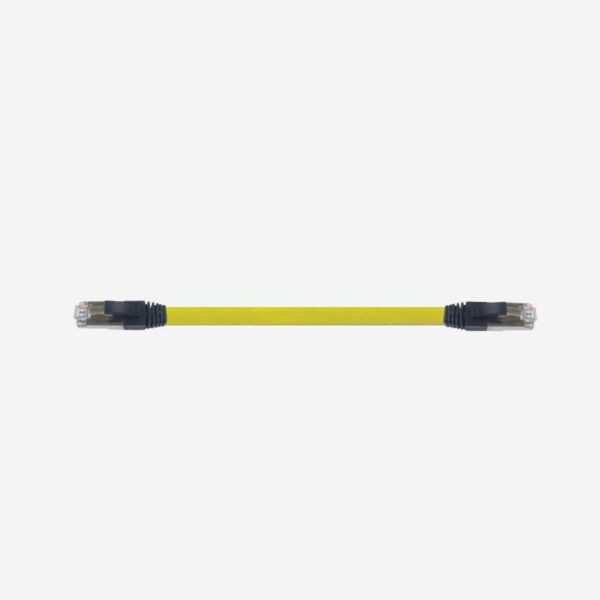

ERFNW-MS88A-0,20YLSZH
RJ45 Erkek 0° – Düz, 8 Pin, LSZH, 0,20 Metre, 4 x 2 x AWG26
- Açıklama
Açıklama
Technical Data
| Standard | IEC 61076 | Contact Carriers Material | CU / AU |
| Series | Male, Straight | Contact Material | Copper Alloy, Gold-Plated |
| Number of Pins | Cu / Au | Metal of Nut | Copper Alloy with Nickel Plated |
| Rated Current | 1,5A max. | Seal | Silicone |
| Rated Voltage | 60V max. | Cable Jacket Material | PUR / LSZH |
| Insulation Resistance | 100M | Color | Optional |
| Contact Resistance | -5m | Shielding | Optional |
| Ambient Temperature | -25 ~ +75°C | Mechanical Life | > 100 Mating Cycles |
| IP Class | IP67 | - | - |
| ARTICLE NO | TYPE | ANGLE | PIN | CABLE LENGTH | COLOR | CABLE TYPE | CABLE SECTION |
|---|---|---|---|---|---|---|---|
| ERFNW-MS88A-0.20YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 0,20 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-0.50YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 0,50 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-01YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 1 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-02YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 2 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-05YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 5 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-10YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 10 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-15YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 15 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-20YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 20 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-25YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 25 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
| ERFNW-MS88A-30YLSZH | M - MALE | S - STRAIGHT | 8 PİN | 30 METERS | YELLOW | PUR/LSZH | 4 x 2 x AWG26 |
