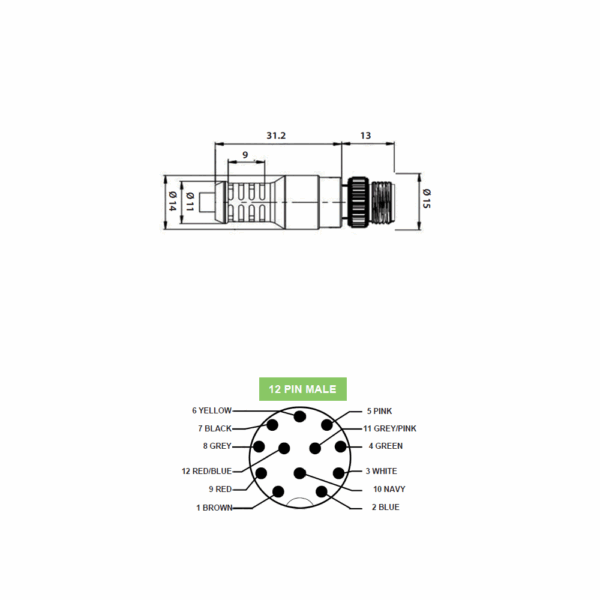

ERF12-MS12D-10BPUR
M12 Erkek, 0° Düz, 12 Pin, PUR, 10 Metre, 12 x 0,14 mm²
- Açıklama
- Ek bilgi
Açıklama
Technical Data
| Standard | IEC 61076 | Contact Carriers Material | PU / PA |
| Series | M12, Male, Straight | Contact Material | Copper Alloy, Gold-Plated |
| Number of Pins | 12 Pin | Metal of Nut | Copper Alloy with Nickel Plated |
| Rated Current | 2A max. | Seal | Silicone |
| Rated Voltage | 60V max. | Cable Jacket Material | PUR / PVC |
| Insulation Resistance | 100M | Color | Optional |
| Contact Resistance | -5m | Shielding | Optional |
| Ambient Temperature | -25 ~ +75°C | Mechanical Life | > 100 Mating Cycles |
| IP Class | IP67 | - | - |
| ARTICLE NO | TYPE | ANGLE | PIN | CABLE LENGTH | COLOR | CABLE TYPE | CABLE SECTION |
|---|---|---|---|---|---|---|---|
| ERF12-MS12D-02BPUR | M - MALE | S - STRAIGHT | 12 PİN | 2 METERS | BLACK | PVC / PUR | 12 x 0,14 mm² |
| ERF12-MS12D-03BPUR | M - MALE | S - STRAIGHT | 12 PİN | 3 METERS | BLACK | PVC / PUR | 12 x 0,14 mm² |
| ERF12-MS12D-05BPUR | M - MALE | S - STRAIGHT | 12 PİN | 5 METERS | BLACK | PVC / PUR | 12 x 0,14 mm² |
| ERF12-MS12D-10BPUR | M - MALE | S - STRAIGHT | 12 PİN | 10 METERS | BLACK | PVC / PUR | 12 x 0,14 mm² |
Ek bilgi
| Kod | A Kod |
|---|
